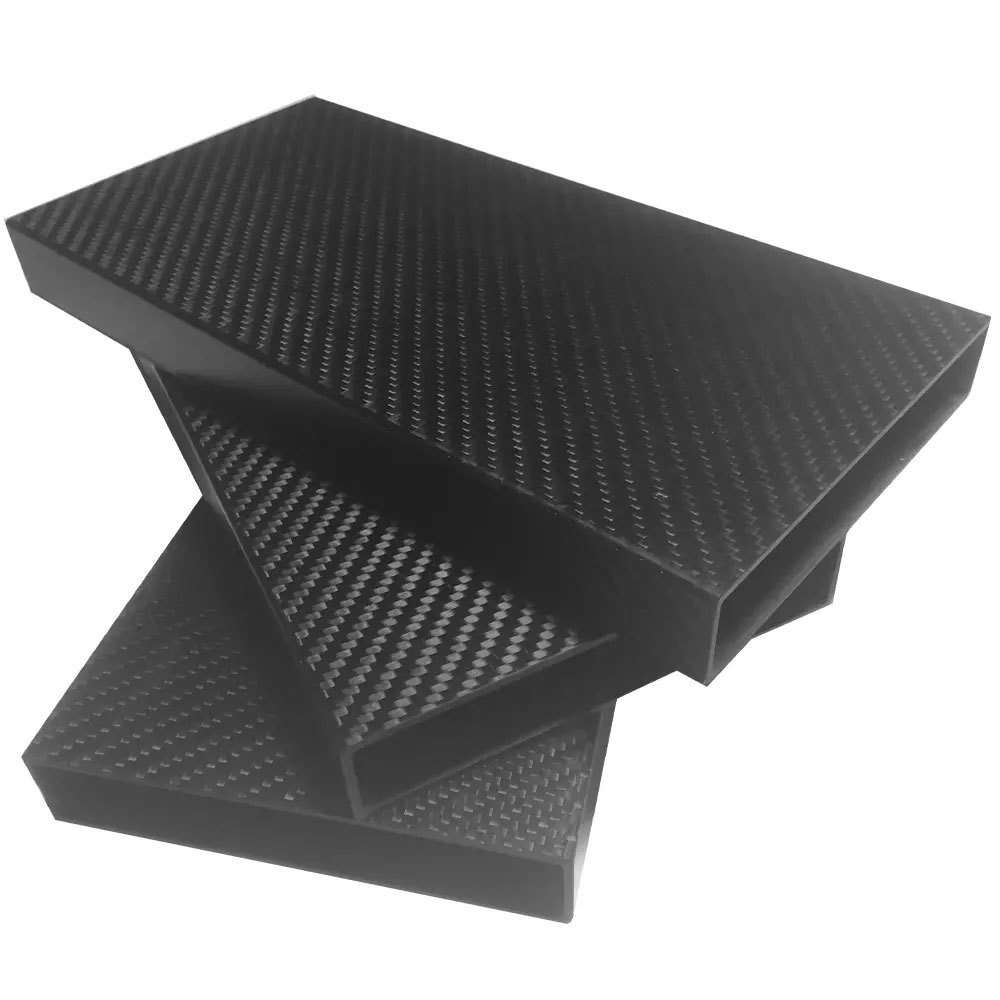

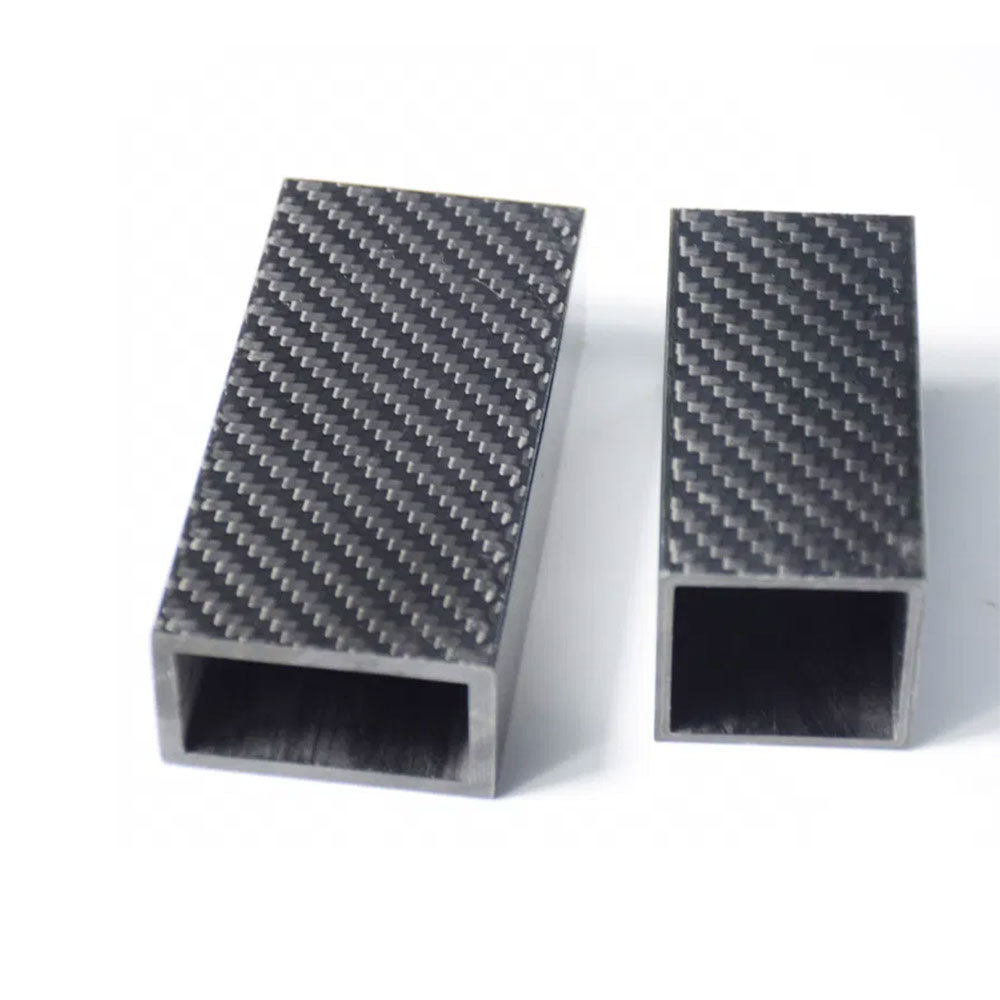

Durable and UV Resistant 3K Carbon Fiber Square and Rectangular Tubes
3K Carbon Fiber Square and Rectangular Tubes are designed for applications requiring a combination of lightweight construction, high stiffness, durability, and excellent structural performance. Manufactured from high-quality 3K carbon fiber, these tubes provide an excellent strength-to-weight ratio while offering a clean, professional carbon fiber appearance.
The square and rectangular profiles provide flat surfaces and defined corners, making them particularly suitable for structural frames, supports, rails, and assemblies where round carbon fiber tubes may not be suitable.
Key Features
- High-quality 3K carbon fiber construction
- Lightweight with high strength and stiffness
- Excellent strength-to-weight ratio
- Durable outer surface
- Good UV resistance with suitable protective finishes
- Excellent corrosion resistance
- Good dimensional stability
- Square and rectangular cross-section options
- Glossy or matte surface finishes available
- Custom dimensions and wall thicknesses
- CNC cutting, drilling, and machining available
- UV Resistant and Durable Surface
For outdoor and demanding applications, UV resistance is an important consideration. A suitable surface coating or finish can help protect the carbon fiber tube from prolonged exposure to sunlight and environmental conditions while maintaining its appearance.
The durable surface is available in different finishes, including glossy and matte, allowing manufacturers to select the appearance that best matches their product design.
Square and Rectangular Profiles
Compared with traditional round tubes, square and rectangular carbon fiber tubes offer flat mounting surfaces and convenient alignment, making them suitable for structural assemblies.
They can be used to create lightweight frames and supports while maintaining excellent rigidity. Custom profile dimensions and wall thicknesses can be selected according to specific mechanical and installation requirements.
Durable and UV-resistant 3K Carbon Fiber Square and Rectangular Tubes offer an excellent combination of lightweight performance, high stiffness, durability, and design flexibility. With customized dimensions, surface finishes, and CNC machining options, they can be manufactured to meet the requirements of both standard and specialized applications.
Lightweight Structure. High Stiffness. Durable Surface. Custom 3K Carbon Fiber Profiles.
|
|
|
Manufacturing Method :
|
Rectangular Carbon Fiber Tube - By Roll Wrapping Process
|
|
Custom Shape Carbon Fiber Tube - By Compression Moulding Process
|
|
Structure
|
UW
|
U= Undirectional Prepreg
|
W= Woven Prepreg
|
|
Raw Materials :
|
Carbon Fiber , Epoxy
|
|
Diameter Range O.D.
|
From 6mm O.D. to 300 mm
|
|
Wall Thickness
|
From 0.5mm to 20mm
|
|
Length :
|
From 0.05 Meter to 3.5 Meters
|
|
Colors :
|
Black Or Any Color from RAL ;
|
|
Surface Treament :
|
Matt Finish & Glossy
|
|
Water Absorption
|
< 1,5 w-%
|
|
Denisty
|
1.5g/cm3
|
|
FIBER TYPE
|
HS Carbon
|
HM Carbon
|
|
Stifiness
|
90- 100 Gpa
|
120-180
|
|
Bending Strength
|
>600 Mpa
|
>500 Mpa
|
|
Tensile Strength
|
> 650 Mpa
|
>550 Mpa
|
|
Denisity
|
> 1.5g/cm3
|
>1.5g/cm3
|
